Stainless Steel 316/316L/316TI Sheets Manufacturer | Stainless Steel 316/316l/316TI Sheets Suppliers | Authorised Distributor & Stockist of Jindal Sheets

ASTM A240 Of Stainless Steel 316/316L/316TI Sheets| Stainless Steel 316 UNS S31600 Sheets| Stainless Steel 316L UNS S31603 Sheets | Stainless Steel 316TI UNS S31635 Sheets| Werkstoff 1.4401/ 1.4404/ 1.4571 Sheets

DM Metalloys Pvt. Ltd. is renowned manufacturer, exporter and supplier of stainless steel 316/316l/316ti sheets at a large scale. 316/316l is basically for severe environments. Type 316/316l/316ti is also austenitic, non-magnetic, and thermally non hardenable stainless steel. The carbon contented is held to 0.08% at extreme, while the nickel gratified is increased somewhat. Molybdenum proliferations the corrosion resistance of this chromium-nickel alloy to tolerate attack by many industrial chemicals and solvents. It increases carbon content which delivers a greater tensile and yield strength. A312, A376, A358, A269 are international standards on which basis the products are mass-produced.

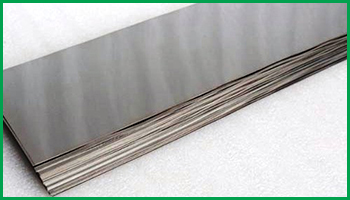

Stainless Steel 316/316L/316TI Sheets

Applications of Stainless Steel 316/316L/316TI Sheets

  • Food preparation equipment
  • Chemical processing, equipment
  • Laboratory benches and equipment
  • Rubber, plastics, pulp & paper machinery
  • Pollution control equipment
  • Boat fittings, value and pump trim
  • Heat exchangers
  • Pharmaceutical and textile industries
  • Condensers, evaporators and tanks

Chemical Composition of Stainless Steel 316/316L/316TI Sheets

Chemical Composition of Stainless Steel 316/316L/316Ti Coils & Strips
Element 316/316L 316Ti
C 0.08 max 0.08 max
Mn 2.0 max 2.0 max
Si 1.00 max 1.00 max
P 0.045 max 0.045 max
S 0.03 max 0.03 max
Cr 16.00-18.00 16.00-18.00
Ni 10.0 - 14.00 10.0 - 14.00
Mo 2.0 - 3.0 2.0 - 3.0
Other Element - Ti5xCmin

Specification of Stainless Steel 316/316L/316TI Sheets

Specification of Stainless Steel 316/316L/316TI Coils & Strips
Standard As per EN , DIN , JIS , ASTM , BS , ASME , AISI , etc.
Specification ASTM A240 / ASME SA 240
Range 5 mm to 100 mm thick in, 1000 mm to 2500 mm width & 2500 mm to 12500 mm length available with NACE MR 01-75s
Sizes Available 0.1 mm thickness to 150 mm thickness
1000 mm x 2000 mm
1220 mm x 2440 mm (4' x 8')
1220 mm x 4880 mm
1250 mm x 2500 mm
1500 mm x 3000 To 6300 mm
2000 mm x 2000 To 10000 mm and As per requirement
SS Coils Thickness 0.2 mm to 20mm
Finish 2B, 2D, BA, NO.1, NO.4, NO.8, N0.3, Mirror, Bead Blast Finish, Satin Finish, Matte Finish, Brushed Finish, Heat Colored finish wide range of electro polished sheets colored surface, Reflective Finish , etc

DM Metalloys Pvt. Ltd. Supplies Stainless Steel 316, 316L, 316TI Sheets in Faridabad, Gurgaon, Gurugram, Gaziabad, Noida, Lukhnow, Delhi, Delhi NCR, Ludhiana, Amritsar, Chandigarh, Jalandhar, Baddi, Punjab, Uttar Pradesh, Haryana, Mumbai, Pune, Sahibabad, Meerut, Manesar, Bhiwadi, Bawal, Neemrana, SIDCUL, Sonepat, Ambala, Mohali, Panchkula, Kapurthala, Bareli, Kanpur.
