Stainless Steel 304/304L/316/316L No.8 Finish Sheets Manufacturer | Stainless Steel 304/304L/316/316L No.8 Finish Sheets Suppliers | Authorised Distributor & Stockist of Jindal Sheets

Stainless Steel ASTM A240 No.8 Finish Sheets Exporters | Stainless Steel 304/304L EN 1.4301/ EN 1.4307 Sheets | Stainless Steel 316/316L UNS S31600/UNS S31603 Sheets

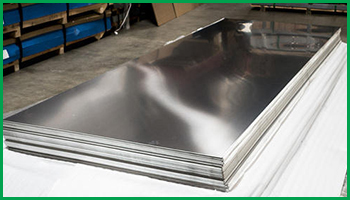

DM Metalloys Pvt. Ltd. is a distinguished manufacturer, supplier, and exporter of Stainless Steel 304/304L/316/316L No.8 Finish Sheets. No.8 finish is highly reflective 'mirror' finish. Produced from 2B finish by polishing with consecutive finer abrasives following by extensive buffing. Mostly used in architectural applications. No. 8 Finish in 304/304l/316/316l is the most philosophical polished finish that is enclosed by the ASTM standards. In comparison to a No. 7 finish, the grit lines are much less noticeable, but they can be seen if the finish is inspected closely. The resulting finish is mirror-like but not a perfect mirror.

Applications of Stainless Steel 304/304L/316/316L Sheets

Applications of Stainless Steel 304/304L/316/316L No.8 Finish Sheets

  • Clean rooms
  • Column covers
  • Mirrors
  • Ornamental trim
  • Press plates
  • Reflectors
  • Signage
  • Wall panels

Specification of Stainless Steel 304/304L/316/316L No.8 Finish Sheets

STAINLESS STEEL TRADENAME UNS NO. WERKSTOFF NO DENSITY (G/CM3)
304 304 Stainless S30400 1.4301 8
304L 304L Stainless S30403 1.4307 8
304H 304H Stainless S30409 1.4948 8
316 316 Stainless S31600 1.4401 8
316L 316L Stainless S31603 1.4404 8
316Ti 316Ti Stainless S31635 1.4571 8

Chemical Composition of Stainless Steel 304/304L/316/316L No.8 Finish Sheets

C MN SI P S CR NI FE
304 0.08 max. 2.00 max. 1.00 max 0.045 max. 0.03 max. 18.0 – 20.0 8.0 – 10.5 Balance
304L 0.03 max. 2.00 max. 1.00 max. 0.045 max. 0.03 max. 18.0 – 20.0 8.0 – 12.0 Balance
304H 0.04-0.10 2.00 max. 1.00 max. 0.045 max. 0.03 max. 18.0 – 20.0 8.0 – 12.0 Balance

Chemical Composition of Stainless Steel 304/304L/316/316L No.8 Finish Sheets

C MN SI P S CR NI MO TI
316 0.08 max. 2.00 max. 1.00 max. 0.045 max. 0.03 max. 16.0 – 18.0 10.0 – 14.0 2.00 – 3.00
316L 0.03 max. 2.00 max. 1.00 max. 0.045 max. 0.03 max. 16.0 – 18.0 10.0 – 14.0 2.00 to 3.00 0.5 max.
316TI 0.08 max. 2.00 max. 1.00 max. 0.045 max. 0.03 max. 16.0 – 18.0 10.0 – 14.0 2.00 to 3.00 5 x %C

Physical & Mechanical Properties of Stainless Steel 304/304L/316/316L No.8 Finish Sheets

  304 304L 304H 316 316L 316TI
Density 8 8 8 8 8 8
Melting Range,℃ 1400 ℃ 1400 ℃ 1400 ℃ 1400 ℃ 1400 ℃ 1400 ℃
Elongation % 40 40 40 40 – 55 40 – 60 40 – 50
Tensile Strength (Mpa) 515 485 515 515 485 515
Yield Strength (Mpa) 205 170 205 205 170 205
Hardness (Brinell) 201 201 201 201 201 201

DM Metalloys Pvt. Ltd. Supplies Stainless Steel 304/304L/316/316L No.8 Finish Sheets in Faridabad, Gurgaon, Gurugram, Gaziabad, Noida, Lukhnow, Delhi, Delhi NCR, Ludhiana, Amritsar, Chandigarh, Jalandhar, Baddi, Punjab, Uttar Pradesh, Haryana, Mumbai, Pune, Sahibabad, Meerut, Manesar, Bhiwadi, Bawal, Neemrana, SIDCUL, Sonepat, Ambala, Mohali, Panchkula, Kapurthala, Bareli, Kanpur.
